report#

scikitplot.decile.kds.report(y_true, y_score, *, pos_label=None, class_index=1, feature_infos=True, digits=3, title_fontsize='large', text_fontsize='medium', plot_style=None, figsize=(10, 5), nrows=2, ncols=2, data=None, **kwargs)[source]#

Generate a decile table and four plots.

Lift -> plot_lift
Lift@Decile -> plot_lift_decile_wise
Gain -> plot_cumulative_gain
KS -> plot_ks_statistic

from labels and probabilities.

Parameters:

y_truearray-like, shape (n_samples,): Ground truth (correct) target values.
y_scorearray-like, shape (n_samples, n_classes): Prediction probabilities for each class returned by a classifier.
class_indexint, optional, default=1: Index of the class of interest for multi-class classification. Ignored for binary classification.
labelsbool, optional, default=True: If True, prints a legend for the abbreviations of decile table column names.

Deprecated since version 0.3.9: This parameter is deprecated and will be removed in version 0.5.0. Use feature_infos instead.
feature_infosbool, optional, default=True: If True, prints a legend for the abbreviations of decile table column names.

Added in version 0.3.9.
title_fontsizestr or int, optional, default=’large’: Font size for the plot title. Use e.g., “small”, “medium”, “large” or integer-values.
text_fontsizestr or int, optional, default=’medium’: Font size for the text in the plot. Use e.g., “small”, “medium”, “large” or integer-values.
digitsint, optional, default=3: Number of digits for formatting output floating point values. Use e.g., 2 or 4.

Added in version 0.3.9.
**kwargsdict, optional: Generic keyword arguments.

Returns:

pandas.DataFrame: The dataframe containing the decile table with the deciles and related information.

Other Parameters:

axmatplotlib.axes.Axes, optional, default=None

The axis to plot the figure on. If None is passed in the current axes will be used (or generated if required).

Added in version 0.4.0.

figmatplotlib.pyplot.figure, optional, default: None

The figure to plot the Visualizer on. If None is passed in the current plot will be used (or generated if required).

Added in version 0.4.0.

figsizetuple, optional, default=None

Width, height in inches. Tuple denoting figure size of the plot e.g. (12, 5)

Added in version 0.4.0.

nrowsint, optional, default=1

Number of rows in the subplot grid.

Added in version 0.4.0.

ncolsint, optional, default=1

Number of columns in the subplot grid.

Added in version 0.4.0.

plot_stylestr, optional, default=None

Check available styles with “plt.style.available”. Examples include: [‘ggplot’, ‘seaborn’, ‘bmh’, ‘classic’, ‘dark_background’, ‘fivethirtyeight’, ‘grayscale’, ‘seaborn-bright’, ‘seaborn-colorblind’, ‘seaborn-dark’, ‘seaborn-dark-palette’, ‘tableau-colorblind10’, ‘fast’].

Added in version 0.4.0.

show_figbool, default=True

Show the plot.

Added in version 0.4.0.

save_figbool, default=False

Save the plot. Used by save_plot_decorator.

Added in version 0.4.0.

save_fig_filenamestr, optional, default=’’

Specify the path and filetype to save the plot. If nothing specified, the plot will be saved as png inside result_images under to the current working directory. Defaults to plot image named to used func.__name__. Used by save_plot_decorator.

Added in version 0.4.0.

overwritebool, optional, default=True

If False and a file exists, auto-increments the filename to avoid overwriting.

Added in version 0.4.0.

add_timestampbool, optional, default=False

Whether to append a timestamp to the filename. Default is False.

Added in version 0.4.0.

verbosebool, optional

If True, enables verbose output with informative messages during execution. Useful for debugging or understanding internal operations such as backend selection, font loading, and file saving status. If False, runs silently unless errors occur.

Default is False.

Added in version 0.4.0: The verbose parameter was added to control logging and user feedback verbosity.

See also

print_labels: A legend for the abbreviations of decile table column names.
decile_table: Generates the Decile Table from labels and probabilities.
plot_lift: Generates the Decile based cumulative Lift Plot from labels and probabilities.
plot_lift_decile_wise: Generates the Decile-wise Lift Plot from labels and probabilities.
plot_cumulative_gain: Generates the cumulative Gain Plot from labels and probabilities.
plot_ks_statistic: Generates the Kolmogorov-Smirnov (KS) Statistic Plot from labels and probabilities.

References

[1] tensorbored/kds

Examples

>>> from sklearn.datasets import (
...     load_breast_cancer as data_2_classes,
... )
>>> from sklearn.model_selection import train_test_split
>>> from sklearn.tree import DecisionTreeClassifier
...
>>> X, y = data_2_classes(return_X_y=True, as_frame=True)
>>> X_train, X_test, y_train, y_test = train_test_split(
...     X, y, test_size=0.5, random_state=0
... )
>>> clf = DecisionTreeClassifier(max_depth=1, random_state=0).fit(
...     X_train, y_train
... )
>>> y_prob = clf.predict_proba(X_test)
...
>>> import scikitplot.decile.kds as kds
>>> dt = kds.report(
>>>     y_test, y_prob, class_index=1
>>> )
>>> dt

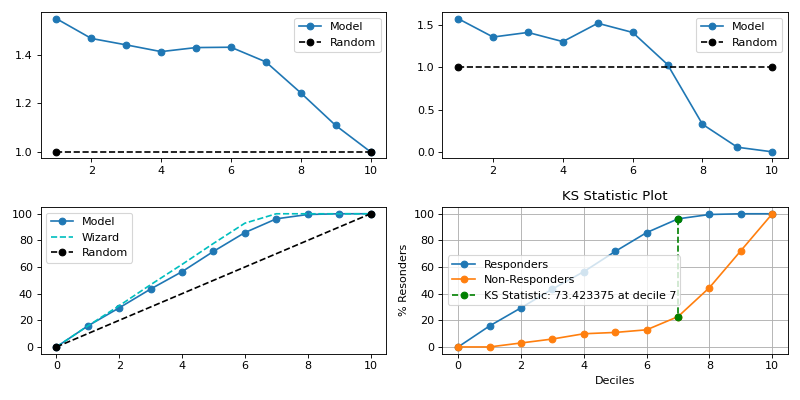

(Source code, png)

Gallery examples#

plot_report with examples
