plot_evalplot_script with examples

An example showing the evalplot function used by a scikit-learn regressor.

# Authors: The scikit-plots developers
# SPDX-License-Identifier: BSD-3-Clause

Import scikit-plot

import scikitplot.snsx as sp

import matplotlib.pyplot as plt
import numpy as np; np.random.seed(0)  # reproducibility
import pandas as pd

from sklearn.datasets import make_classification
from sklearn.datasets import (
    load_breast_cancer as data_2_classes,
    load_iris as data_3_classes,
    load_digits as data_10_classes,
)
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import train_test_split

def logistic_scale(scores):
    """Scale decision_function outputs to (0,1) using the logistic (sigmoid) function."""
    scores = np.asarray(scores, dtype=float)
    # Clip to avoid overflow for large |x| before exp
    # scores = np.clip(scores, -500, 500)
    return 1.0 / (1.0 + np.exp(-scores))

def minmax_scale(scores):
    """Linearly scale an array to [0,1]."""
    scores = np.asarray(scores, dtype=float)
    min_, max_ = np.min(scores), np.max(scores)
    if np.isclose(min_, max_):
        # Avoid divide-by-zero when all values identical
        return np.zeros_like(scores)
    return (scores - min_) / (max_ - min_)

Load the data X, y = data_3_classes(return_X_y=True, as_frame=False) X, y = data_2_classes(return_X_y=True, as_frame=False)

# Generate a sample dataset
X, y = make_classification(n_samples=5000, n_features=20, n_informative=15,
                          n_redundant=2, n_classes=2, n_repeated=0,
                          class_sep=1.5, flip_y=0.01, weights=[0.85, 0.15],
                          random_state=0)

X_train, X_val, y_train, y_val = train_test_split(
    X, y, stratify=y, test_size=0.2, random_state=0
)
np.unique(y)

array([0, 1])

Create an instance of the LogisticRegression

model = (
    LogisticRegression(
        # max_iter=int(1e5),
        # C=10,
        # penalty='l1',
        # solver='liblinear',
        class_weight='balanced',
        random_state=0
    )
    .fit(X_train, y_train)
)
# Perform predictions
y_val_prob = model.predict_proba(X_val)
# Create a DataFrame with predictions
df = pd.DataFrame({
    "y_true": y_val==1,  # target class (0,1,2)
    "y_score": y_val_prob[:, 1],  # target class (0,1,2)
    # np.argmax
    "y_pred": y_val_prob[:, 1] > 0.5,  # target class (0,1,2)
    # "y_true": np.random.normal(0.5, 0.1, 100).round(),
    # "y_score": np.random.normal(0.5, 0.15, 100),
    # "hue": np.random.normal(0.5, 0.4, 100).round(),
})
df

	y_true	y_score	y_pred
0	False	0.033725	False
1	True	0.860583	True
2	False	0.423101	False
3	False	0.137295	False
4	False	0.788645	True
...	...	...	...
995	False	0.228034	False
996	False	0.017187	False
997	True	0.987892	True
998	False	0.931136	True
999	False	0.128248	False

1000 rows × 3 columns

p = sp.evalplot(
    df,
    x="y_true",
    y="y_pred",
    # y="y_score",
    # allow_probs=True,  # if y_score provided
    # threshold=0.5,
    kind="all",
)

p = sp.evalplot(
    df,
    x="y_true",
    y="y_pred",
    kind="classification_report",
    text_kws={'fontsize': 16},
)

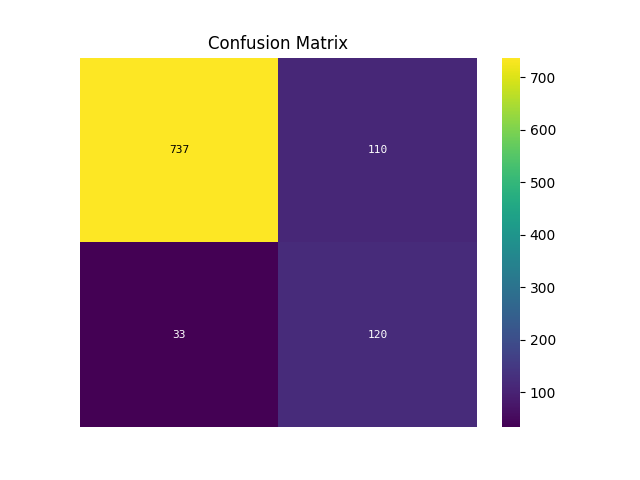

p = sp.evalplot(
    df,
    x="y_true",
    y="y_pred",
    kind="confusion_matrix",
)

fig, ax = plt.subplots(figsize=(8, 6))

p = sp.evalplot(
    df,
    x="y_true",
    # y="y_pred",
    y="y_score",
    allow_probs=True,  # if y_score provided
    threshold=0.5,
    kind="all",
)

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import make_classification
from sklearn.datasets import (
    load_breast_cancer as data_2_classes,
    load_iris as data_3_classes,
    load_digits as data_10_classes,
)
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report, confusion_matrix

Load the data X, y = data_3_classes(return_X_y=True, as_frame=False) X, y = data_2_classes(return_X_y=True, as_frame=False)

# Generate a sample dataset
X, y = make_classification(n_samples=5000, n_features=20, n_informative=15,
                          n_redundant=2, n_classes=2, n_repeated=0,
                          class_sep=1.5, flip_y=0.01, weights=[0.97, 0.03],
                          random_state=0)

X_train, X_val, y_train, y_val = train_test_split(
    X, y, stratify=y, test_size=0.2, random_state=0,
)
np.unique(y)

array([0, 1])

Initialize the Random Forest Classifier

rf_model = RandomForestClassifier(
    class_weight='balanced',
    n_estimators=100,
    max_depth=6,
    random_state=0,
)

# Train the model
rf_model.fit(X_train, y_train)

RandomForestClassifier(class_weight='balanced', max_depth=6, random_state=0)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Make predictions on the test set

y_val_pred = rf_model.predict(X_val)
y_val_prob = rf_model.predict_proba(X_val)[:, 1]

fig, ax = plt.subplots(figsize=(8, 8))

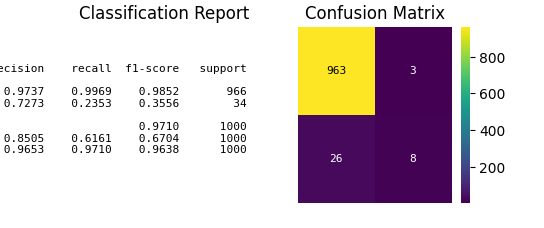

p = sp.evalplot(
    x=y_val,
    y=y_val_pred,
    kind="all",
)

fig, ax = plt.subplots(figsize=(8, 8))

p = sp.evalplot(
    x=y_val,
    # y=y_pred,
    y=y_val_prob,
    allow_probs=True,  # if y_score provided
    threshold=0.5,
    kind="all",
)

Generate a classification report

print(classification_report(y_val, y_val_pred))

# Generate a confusion matrix
conf_matrix = confusion_matrix(y_val, y_val_pred)
print(conf_matrix)

              precision    recall  f1-score   support

           0       0.97      1.00      0.99       966
           1       0.73      0.24      0.36        34

    accuracy                           0.97      1000
   macro avg       0.85      0.62      0.67      1000
weighted avg       0.97      0.97      0.96      1000

[[963   3]
 [ 26   8]]

import seaborn as sns

# plt.figure(figsize=(12, 7))
# sns.heatmap(conf_matrix, annot=True, fmt='d', cmap='Blues',
#             xticklabels=np.arange(15), yticklabels=np.arange(15))
# plt.ylabel('Actual')
# plt.xlabel('Predicted')
# plt.title('Confusion Matrix')
# plt.show()

Tags: model-type: classification model-workflow: model evaluation plot-type: line plot-type: eval level: beginner purpose: showcase
